Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

5.2/42.5/41

Maximum electrical data

Imax(A)

24

Umax(V)

800

Maximum bridge current(A)

24

Electric parameter

Rated voltage(V)

800

Nominal current(A)

24

Nominal cross section(mm²)

2.5

Connection capacity(mm²)

Rigid conductor

0.2-4

Flexible conductor

0.25-2.5

Ordering data

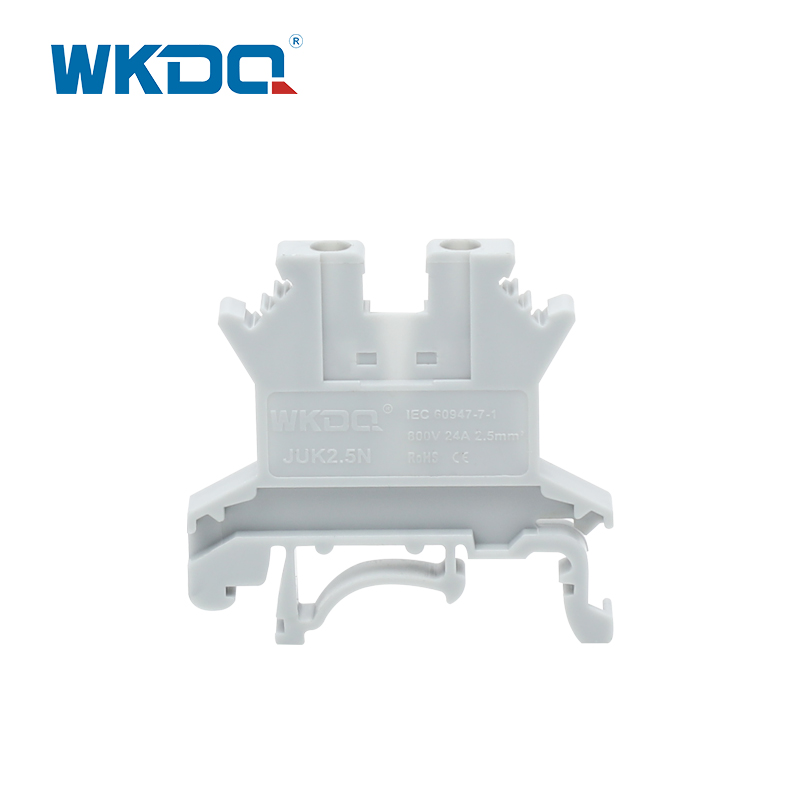

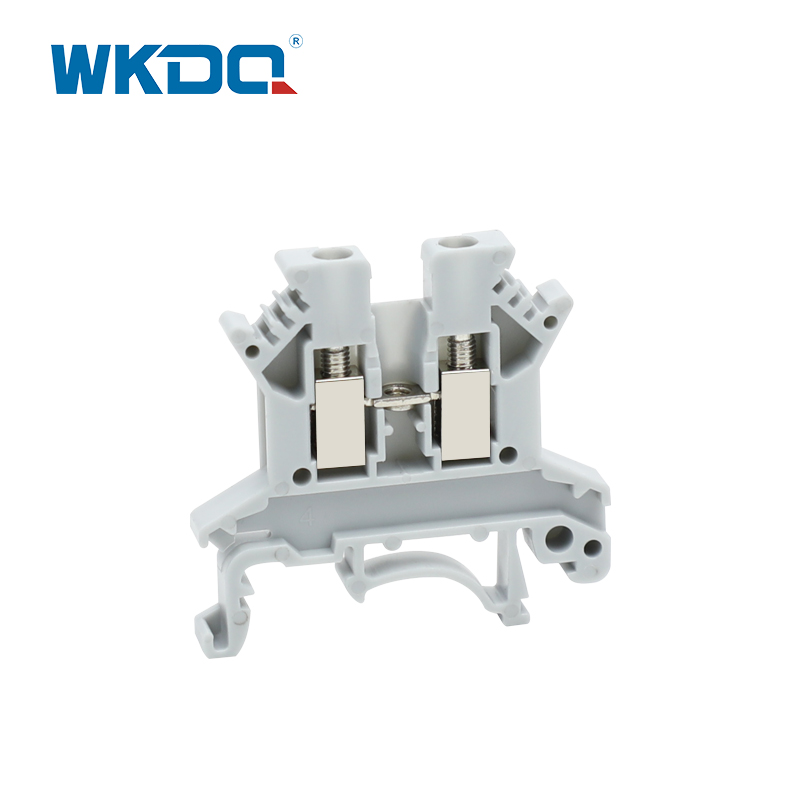

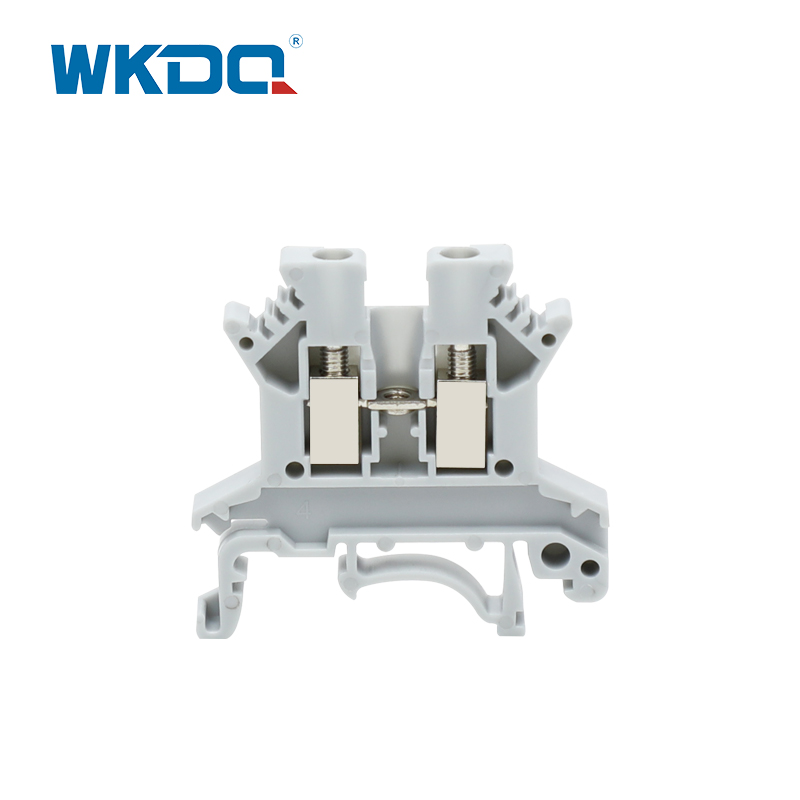

Universal terminal block

Part No.

Color

Order No.

Pcs/Pkt.

JUK2.5N

Grey

100101052

100

JUK2.5N BK

Black

100101052BK

100

JUK2.5N BU

Blue

100101052BU

100

JUK2.5N RD

Red

100101052RD

100

JUK2.5N YE

Yellow

100101052YE

100

JUK2.5N GN

Green

100101052GN

100

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Ground terminal block

-

Yellow/Green

-

-

End cover

D-JUK2.5

-

100201002

100

Partition plate

ATP-JUK

-

100201013

100

Separating plate

TS-KK3

-

100201014

1000

Fixed bridge

Seats

2

JFBI2-5

Sliver

100211004

100

3

JFBI3-5

Sliver

100211005

100

10

JFBI10-5

Sliver

100211003

20

customized

-

Sliver

-

-

Insertion bridge

Seats

2

JEB2-5

Grey

100211066

200

3

JEB3-5

Grey

100211067

200

10

JEB10-5

Grey

100211065

50

Marker strip

ZB5

Blank

100222007

100

ZB5

Standard numbers

100222008

100

ZB5

Customized words

100222009

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
