Technical parameters

Circuit Diagram

Certificates

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

5.2/100/56.5

Maximum electrical data

Imax(A)

28

Umax(V)

500

Maximum bridge current(A)

20

Electric parameter

Rated voltage(V)

500

Nominal current(A)

20

Nominal cross section(mm2)

2.5

Connection capacity(mm2)

Rigid conductor

0.08-4

Flexible conductor

0.14-2.5

Ordering data

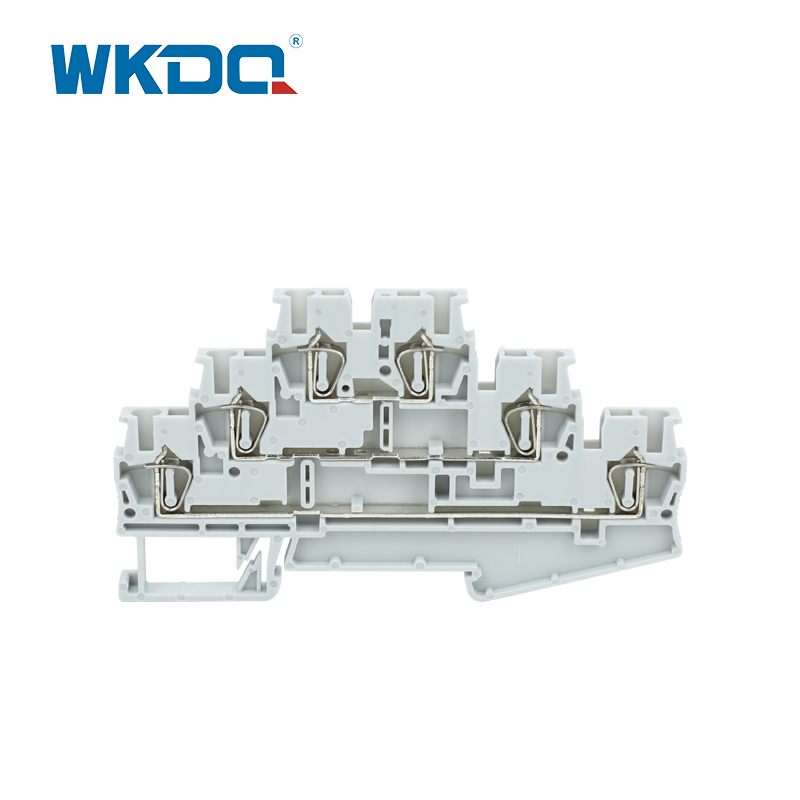

Spring-cage Triple Level Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

JST2.5-3L

Grey

100103012

50

JST2.5-3L BU

Blue

100103012BU

50

JST2.5-3L OG

Orange

100103012OG

50

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

-

-

Yellow/Green

-

-

End cover

D-JST2.5-3L

-

100202010

50

Partition plate

-

Plug-in Bridge

Seats

2

FBS2-5

Red

100212012

100

3

FBS3-5

Red

100212013

100

4

FBS4-5

Red

100212014

100

5

FBS5-5

Red

100212015

100

10

FBS10-5

Red

100212011

50

Marker strip

ZBFM5

Blank

100222022

100

ZBFM5

Standard numbers

100222023

100

ZBFM5

Customized words

100222024

100

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
