Technical parameters

Circuit Diagram

11

Certificates

CE, ROHS

Insulating material, Flammability rating

PA，V0

Dimensions

Width/Length/Height(mm)

10.1/28.8/18.3

Maximum electrical data

Imax(A)

24

Umax(V)

500

Maximum bridge current(A)

17.5

Electric parameter

Rated voltage(V)

500

Nominal current(A)

17.5

Nominal cross section(mm²)

2.5

Connection capacity(mm²)

Rigid conductor

0.08-2.5

Flexible conductor

0.08-2.5

Ordering data

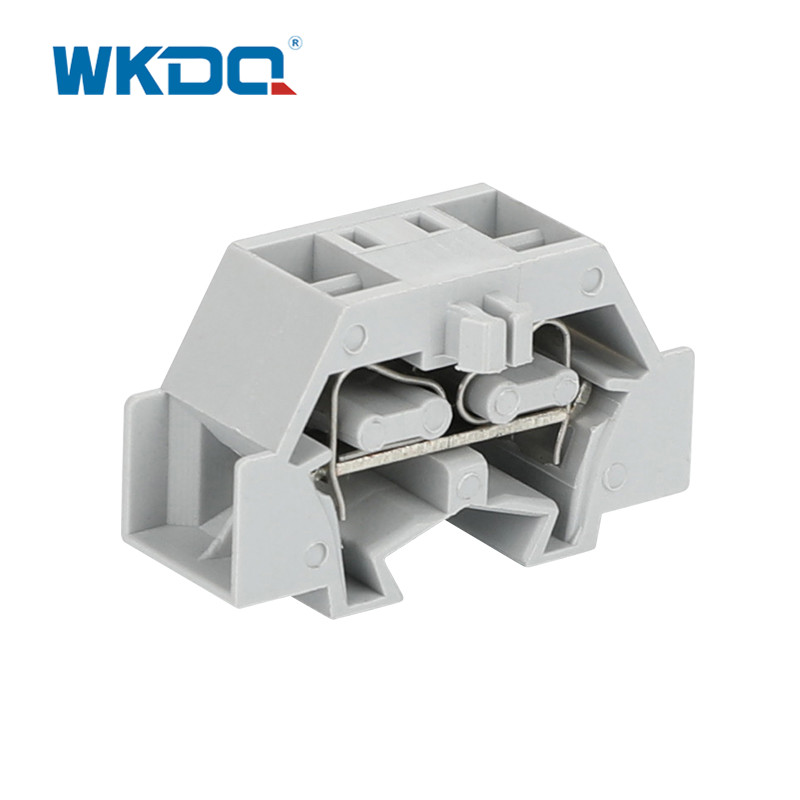

Mini Terminal Blocks

Part No.

Color

Order No.

Pcs/Pkt.

261-331

Grey

100109020

200

261-331 OG

Orange

100109020OG

200

261-331 BU

Blue

100109020BU

200

-

Yellow

-

-

-

White

-

-

Accessories

Description

Part No.

Color

Order No.

Pcs/Pkt.

Ground terminal block

-

Yellow/Green

-

-

End cover

261-361

-

100205019

200

Partition plate

-

-

-

-

Adjacent bridge

-

Grey

-

-

Alternate Bridge

-

Grey

-

-

Mounting Foot

209-123

Grey

100223006

100

Push Button

261-ZTJ

White

100224033

-

Marker carrier

①JKLM-A

Transparent

100221001

100

②JB1

Grey/Beige

100221002

100

③JB2

Grey

100221003

100

End clamp

①E/JUK

Grey

100223001

100

②E/JUK-2

Grey

100223002

100

③JEW35

Grey/Beige

100223003

100

④E/JAL

Aluminum

100223004

50

⑤E/FE-2

Steel

100223005

100

⑥WKF35

Grey

100223008

100

⑦WKF35/S

Grey

100223009

100

DIN rail

NS35-AL

(Aluminum）

NS35-AL-0.9（1m）

Sliver grey

100224034

100

NS35-AL-1.1（1m）

Sliver grey

100224035

100

NS35-AL-1.3（1m）

Sliver grey

100224001

100

NS35-AL-1.5（1m）

Sliver grey

100224003

100

NS35-S

(Steel)

NS35-S-0.9（1m）

Color galvanized

100224038

100

NS35-S-1.0（1m）

Color galvanized

100224005

100

NS35-S-1.2（1m）

Color galvanized

100224007

100

Other length（2M）can be customized

DIN rail end cap

NS35HT-B

Black

100224009

100

NS35HT-T

Transparent

100224009T

100

DIN rail holder

TSTW

Galvanized steel

100224010

50
