Technical parameters

Certificates

Insulating material, Flammability rating

PV66

Dimensions

Width(mm)

0.9；1.1；1.3；1.5

Length(m)

1

Ordering data

 Description

Part No.

Color

Order No.

Pcs/Pkt.

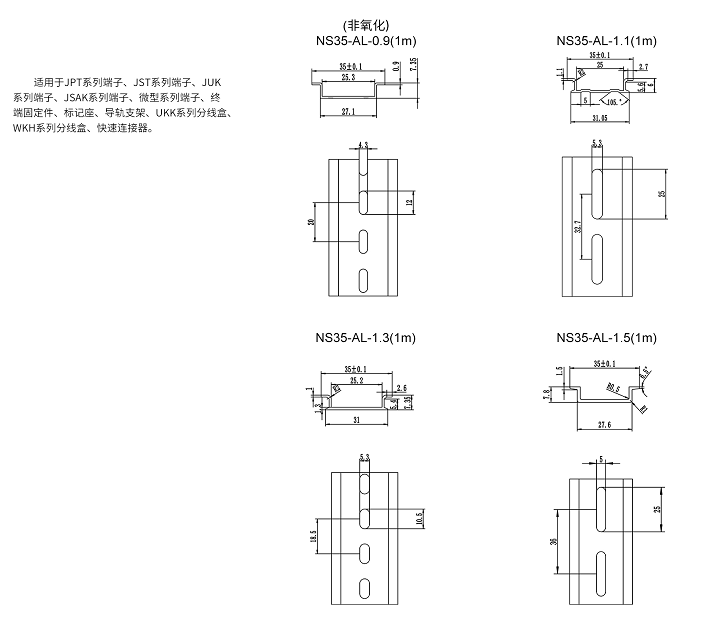

Non-Oxide  AluminumDIN Rail

NS 35-AL-0.9

Sliver grey

100224034

100

Oxide Plated Aluminum DIN Rail

NS 35-AL-1.1

Sliver grey

100224035

100

NS 35-AL-1.3

Sliver grey

100224001

100

NS 35-AL-1.5

Sliver grey

100224003

100

Other length（2M）can be customized

Application range
